Tongtai Machine & Tool Co., Ltd.(4526. TW) is a machine manufacturer with the biggest scale among TTGroup’s members, and also is the listed company with the highest revenue among Taiwan’s machinery manufacturing groups. 50 Years of Sturdy Technology Foundation established in 1969, in Kaohsiung, Taiwan, and become a listed company at the stock exchange market in 2003. Tongtai started with producing customized machines, and now we become the maker with diverse product lines.

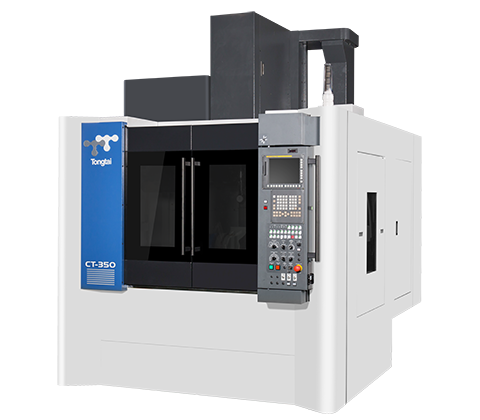

5-axis Machining Center CT-350

Tongtai

• Workpiece’s size of up to maximum Ø380 mm/H220 mm
• Equipped with zero-backlash roller gear cam type trunnion table, allowing for high precision and strong rigidity
• 5-axis machining can complete complex processes in one-sitting
• Excellent cost performance value

Integrated cast iron bed that has undergone multiple structural analysis by using computer, can reach high rigidity, good vibration absorption, and the bed is not prone to displacement that allows for enhanced precision processing capability Applies AC servo motor and the ball screw with high loading capacity and high accuracy. Can attain high stability during processing, most suitable for small hole drilling Highly rigid powerful dual guideway, faster for hole drilling and longer drills lifetime

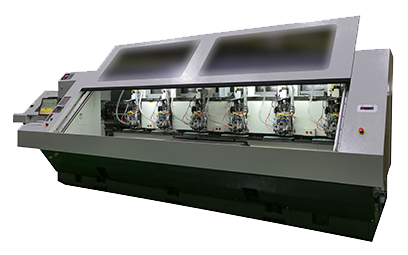

SD-616B

Tongtai

• Number of stations: 6
• Max. spindle speed (300,000) rpm
• Tool capacity: 350 pc
• Drill diameter: 0.1~6.35 mm
• Controller: SIEB & MEYER CNC 84.00

Main components applies a highly stable material-cast iron, which as its main part of machine, the heat expansion coefficient is the same so it can make a balance to reach stable processing precision Integrated cast iron worktable, with rigidity higher than aluminum worktable that can suppress deformation to the minimal state Applies AC servo motor, and the ball screw with high loading capacity and high accuracy. Can attain high stability during processing, most suitable for small hole drilling In order to manage heavy duty forming processing, the Z-axis guideway applies highly rigid cast iron components to suppress vibration and enhance processing stability

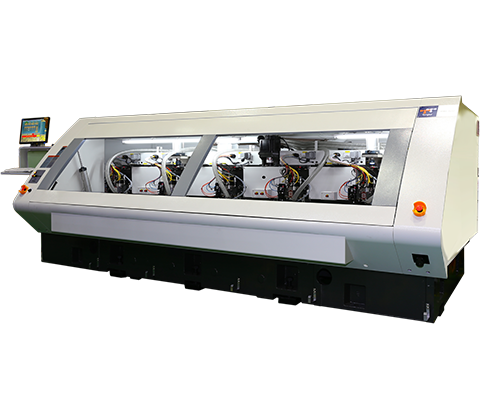

TRM-526

Tongtai

• Spindle number: 5
• Max. speed 60,000(Opt. 80,000) rpm
• Working area: 670x760 mm
• Tool diameter: 0.75~3.175 mm
• Controller:SIEB & MEYER CNC82AS
